Cable Plows
Delta Plows has been the leader in tracked cable plows for the communications and utility construction industry for more than 20 years. Whatever the job, we have the solution.
Our newest plows – the Quad-Track QT-196XR – feature steerable rear axles and planetary final drives with steel tracks.
But that’s not all we offer. Dig in to our full line of products to see more.
-
DT-140P
- Base Tractor: John Deere 6068T
- Engine: 6 Cylinder John Deere Turbocharged Engine
- Horsepower: 115 HP @ 2,400 RPM (81 kW)
- Weight: 25,500 LB
- PowerTrain: 6 Cylinder John Deere Turbocharged Engine
- Length: 342"
- Track Width: 97"
- Ground Clearance: 11”
- Fuel Capacity: 47 GAL
- Hydraulic Oil Capacity: 19.8 GAL
- Drive System: Infinitely Variable Hydrostatic
Speed 0 – 5 MPH (0 – 8 KM/H)
Maximum Drawbar Pull 45,000 LBS
-
DT-141P
- Base Tractor: John Deere 6068T
- Engine: 4 Cylinder Inline
- Horsepower: 115 HP @ 2,400 RPM (81 kW)
- Weight: 25,500 LB
- PowerTrain: 6 Cylinder John Deere Turbocharged Engine
- Track Width: 97"
- Ground Clearance: 11”
- Fuel Capacity: 47 GAL
- Hydraulic Oil Capacity: 19.8 GAL
- Drive System: Infinitely Variable Hydrostatic
Speed 0 – 5 MPH (0 – 8 KM/H)
Maximum Drawbar Pull 45,000 LBS
-
DT-145P
- Base Tractor: John Deere 6068T
- Engine: 6 Cylinder John Deere Turbocharged Engine
- Horsepower: 115 HP @ 2,400 RPM (81 kW)
- Weight: 31,500 LB
- PowerTrain: 6 Cylinder John Deere Turbocharged Engine
- Length: 342"
- Track Width: 97"
- Ground Clearance: 11”
- Fuel Capacity: 47 GAL
- Hydraulic Oil Capacity: 19.8 GAL
- Drive System: Infinitely Variable Hydrostatic
Speed 0 – 5 MPH (0 – 8 KM/H)
Maximum Drawbar Pull 45,000 LBS
-
DT-146P
- Base Tractor: John Deere 6068T
- Engine: 4 Cylinder Inline
- Horsepower: 115 HP @ 2,400 RPM (81 kW)
- Weight: 25,500 LB
- PowerTrain: 6 Cylinder John Deere Turbocharged Engine
- Length: 342"
- Track Width: 97"
- Ground Clearance: 11”
- Fuel Capacity: 47 GAL
- Hydraulic Oil Capacity: 19.8 GAL
- Drive System: Infinitely Variable Hydrostatic
Speed 0 – 5 MPH (0 – 8 KM/H)
Maximum Drawbar Pull 45,000 LBS
-

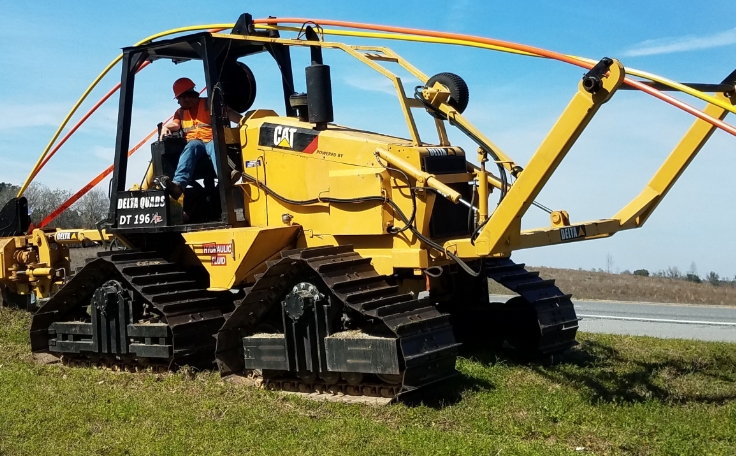

QT-196
- Base Tractor: Delta
- Engine: CAT C7
- Horsepower: 230
- Plowing Depth: 48 in.
- Chute Size: 1.5 in. to 4 in. ID
- Weight: 35,000 lbs.
- Drive: Steerable
- Towable: Yes
- Availability: Special Order
- Length: 29 ft.
- Width: 102 in.
- Height: 109 in.
- Fuel Capacity: 44 Gal.
- Hydraulic Oil Capacity: 38 gal.
- Drive System: Steerable Axles
-

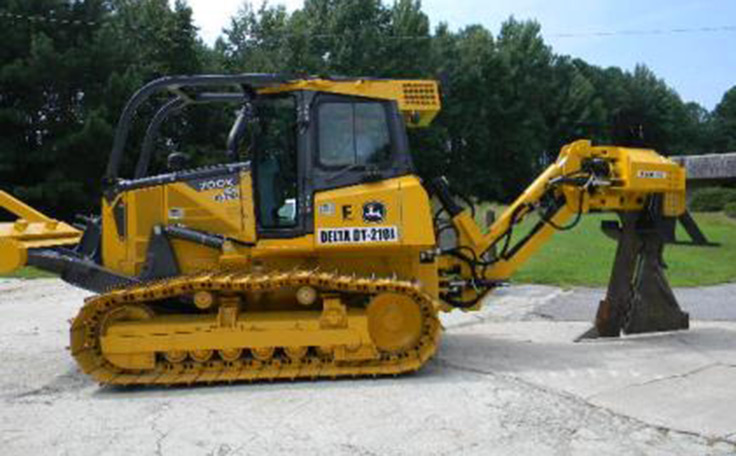

DT-210J
- Base Tractor: JOHN DEERE 6068 D.I.T.A.
- Engine: 6 Cylinder Inline
- Horsepower: 135 HP @ 2200 RPM
- Plowing Depth: 30" through 52" Soil Dependent
- Chute Size: 1-4 in. ID
- Weight: 34,600 lbs.
- Drive: Electronic-Controled Hydrostatic Drive
- Length: 29 ft. 8 in.
- Width: 9ft 1 in.
- Height: 10ft 6in.
- Max. Lift Capacity: 8,000 LBS
-

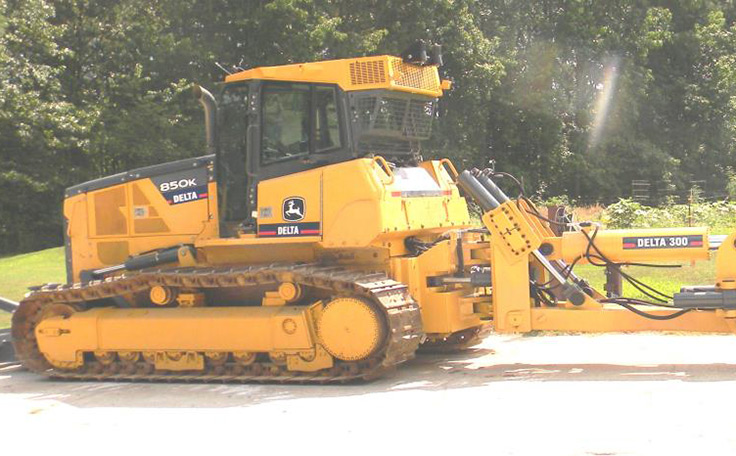

DT-300K
- Engine: PSS 6090 D.I.T.A
- No. Of Cylinders: 6 CYLINDER INLINE
- BORE AND STROKE: 4.75” x 6.0”
- Horsepower: 225 HP @ 1700 RPM
- Displacement: 9.0 LITERS (549 CU. IN.)
- Plowing Depth: 48-90 in.
- Chute Size: 1.75-6 in. ID
- Oil Filter: Full Flow, Spin On Type
- Max. Torque: 831 Ft.-lbs. @ 1500 RPM
Delta Plows reserves the right to change these specifications without notice and without incurring any obligation relating to such changes.
Unit illustrated may be equipped with non-standard equipment.
